Heat Transfer Systems

Chromalox heat transfer systems are safe, versatile, user-friendly heating systems for process heating applications requiring closely controlled process temperatures. Pre-engineered and constructed with carefully matched components, these commercial and industrial heating systems provide easy installation and trouble-free operation in industrial heating applications.Chromalox Heat Transfer Systems are used in process heating applications requiring closely controlled process temperatures. Systems are furnished complete with heaters, controls, pumps, valves and necessary plumbing.

Chromalox horizontal electric vaporizers are designed for use with Dowtherm, Therminol, and other organic fluids to transfer heat at high temperatures and low pressures. They are pre-engineered, pre-wired, and pre-piped packages designed for flexible, dependable, and efficient operation. All units are ASME-certified to 150 psi at 750°F with 300 lb construction throughout. Seal-welded element design eliminates leaks and improves serviceability on the heater. Units available with over-pressure, process, remote, or skid mounted controls. Optional NEMA weather- and explosion-resistant enclosures are also available.

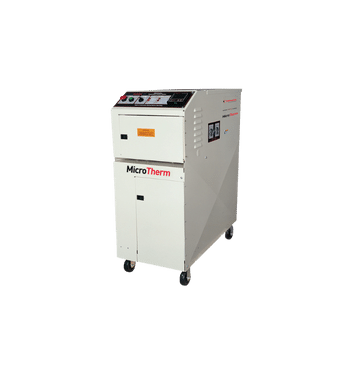

	CMXO Oil Heat Transfer System This product is pre-piped with pump, heaters and expansion tank. 1.5" NPT piping connections for oil provide for convenient hook up to external high temperature hoses or piping. All wiring conforms to NEC requirements.

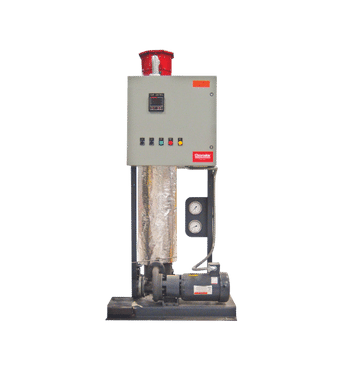

	MOS Hot Oil System Chromalox MOS Mid-Size Hot Oil System is engineered to operate to 600°F (315°C) standard, with an option for up to 650°F (343°C), at atmospheric pressure (non-pressurized). Its electric heating core assures responsive and precise temperature control in a space saving package. The system can be used with most types of heat transfer oils such as Paratherm®, Mobiletherm®, Therminol®, Dow Brands®, etc. The MOS operates in a closed loop system using a cold expansion tank (optional). A cold expansion tank can remove the need for a nitrogen (N2) purge and reduces the degredation of heat transfer fluids
	CMX Water Heat Transfer System Chromalox MicroTherm™ CMX Series Circulating Water Temperature Controllers are compact, versatile and completely self- contained water heating and cooling systems. The CMX series products can be used in any application where precision temperature control of a heating and cooling water circulation system is needed. They are particularly useful in the plastics industry as mold temperature controllers.

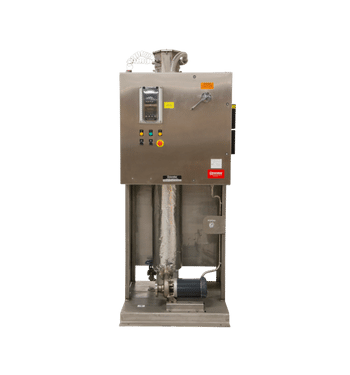

	MWS Water & Water / Glycol System Chromalox MWS - Mid-Size Water/Glycol System - is engineered to operate to 300°F (150°C) with either water or water/glycol fluids. Its electric heating core assures responsive and precise temperature control in a space saving package. The system is suitable for a large range of heating needs with a compact design. The MWS operates in a closed loop system using a cold expansion tank (optional).

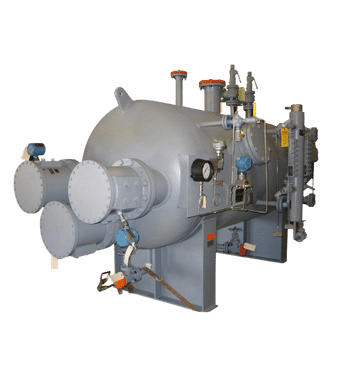

	Vaporizer Systems Chromalox Heat Transfer Fluid Vaporizers are designed for use in textile, chemical, petrochemical and other industries requiring high temperatures and low operating pressures in their manufacturing processes. They operate to 750°F using Dowtherm® A or J, Therminol® VP-1 and other organic vapor phase heat transfer fluids.  Vapor systems transfer more heat energy per pound of heat transfer medium than comparable liquid phase systems. As the fluid vapor condenses to a liquid in the process piping, it releases the latent heat of vaporization. Unlike steam, heat transfer fluids operate at relatively low pressures at elevated temperatures.
