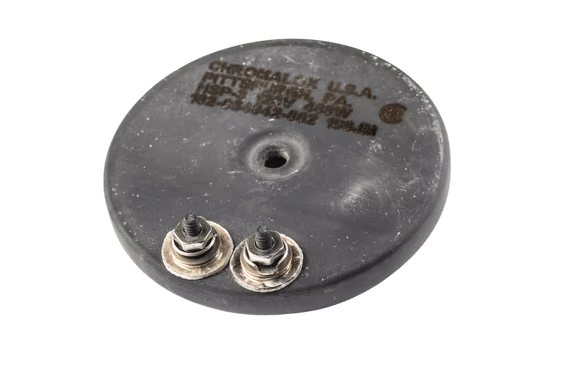

Ring Heaters
Chromalox High Density Ring Heaters are manufactured using the same construction as our high density strip heater. Chromalox Ring Heaters are available in diameters ranging from 2 1/2" to 11" with inside diameters from 1/2" to 8 1/2". Ring Heaters have temperature ratings up to 1200°F (650°C). Ring Heaters have a wide variety of surface heating applications.
A - Single & Three Heat Ring Heater
Chrome Steel Sheath — 1200°F max. sheath temp.
Single-Heat Rings have two terminals for single wattage on-off switch or thermostat.
Three-Heat Rings have three terminals that split the heater into two equal circuits. Center terminal is common.
Refractory-Insulated Construction — for dependable long service life.
Easy Installation — Circular shape and use of Chromalox utility clamps simplifies use of ring heaters.
Nesting Rings to Pack Heat in a Small Area — For example A-65, A-80 and A-90 combination provide 4,050 Watts within a 11" circle.
HSN Half & Full Sheath Ring Heaters
Single-Heat Rings have two terminals for single wattage on-off switch or thermostat.
Three-Heat Rings have three terminals that split the heater into 2 equal circuits. Center terminal is common.
Easy Installation — Circular shape and use of Chromalox utility clamps simplifies use of ring heaters.
Nesting Rings to pack heat in a small area.
Half Sheath Units Have Reduced Thermal Gradient to Heated Surface — Provides faster heat up.
HSW Half & Full Sheath Ring Heater
Single-Heat Rings have two terminals for single wattage on-off switch or thermostat.
Three-Heat Rings have three terminals that split the heater into 2 equal circuits. Center terminal is common.
Easy Installation — Circular shape and use of Chromalox utility clamps simplifies use of ring heaters.
Nesting Rings to pack heat in a small area.
Half Sheath Units Have Reduced Thermal Gradient to Heated Surface — Provides faster heat up.
RHSW Half & Full Sheath Ring Heaters
Single-Heat Rings have two terminals for single wattage on-off switch or thermostat.
Three-Heat Rings have three terminals that split the heater into 2 equal circuits. Center terminal is common.
Easy Installation — Circular shape and use of Chromalox utility clamps simplifies use of ring heaters.
Nesting Rings to pack heat in a small area.
Half Sheath Units Have Reduced Thermal Gradient to Heated Surface — Provides faster heat up.
